Semi Automatic Oxygen Nitrogen Helium Argon Gas Changeover Manifold Manual Gas Changeover Manifold Panel For Gas Cylinders

Semi Automatic Oxygen Nitrogen Helium Argon Gas Changeover Manifold Manual Gas Changeover Manifold Panel For Gas Cylinders

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Jewellok

Certification: CE

Model Number: JW-100

Payment & Shipping Terms

Minimum Order Quantity: >=1 Sets

Price: Negotiable

Packaging Details: Export packing

Supply Ability: 5000 Set/Sets per Week



Specifications

Highlight: Specialty gas control panel,  semi automatic switchover manifold or manual gas changeover manifold panel

Max Inlet Pressure:	3000 Psig	Outlet Pressure Range:	0~25, 0~50, 0~100, 0~200 Psig
Working Temperature:	-40° F ~+165° F(-40°C+74°C)	Cv:	0.06
Valve Seat:	PTFE	Body Material:	316L
Diaphragms:	316L	Port:	SHENZHEN



Product Description

Semi Automatic Oxygen Nitrogen Helium Argon Gas Changeover Manifold Manual Gas Changeover Manifold Panel For Gas Cylinders

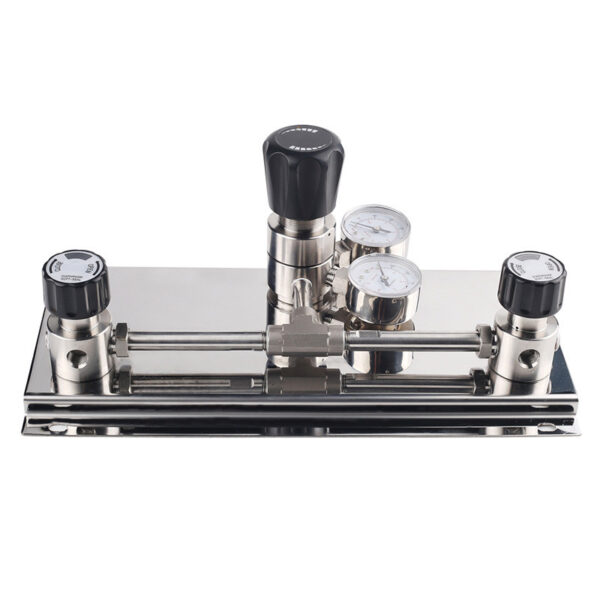

Semi-Automatic Gas Changeover Manifold

A semi-automatic gas changeover manifold is a system designed to ensure a continuous gas supply from multiple cylinders by automatically switching between them when one cylinder is depleted. It is commonly used in industrial, medical, and laboratory settings where uninterrupted gas flow is critical. The system typically consists of two banks of cylinders connected to a central manifold with pressure regulators, valves, and a changeover mechanism. When the primary cylinder bank reaches a preset low pressure, the system seamlessly switches to the secondary bank, ensuring no downtime. An alarm or indicator alerts operators to replace the empty cylinders. The manifold maintains consistent pressure and flow, enhancing safety and efficiency. It requires minimal manual intervention, reducing human error. Regular maintenance, including checking for leaks and ensuring proper valve function, is essential for reliable operation.

Manual Gas Changeover Manifold Panel

A manual gas changeover manifold panel provides a controlled gas supply from multiple cylinders but requires manual intervention to switch between cylinder banks. It includes pressure regulators, gauges, and valves for monitoring and controlling gas flow. Operators manually switch to a new cylinder bank when the active one is empty, making it suitable for applications with less frequent changeovers. While cost-effective and simple, it demands vigilant monitoring to avoid interruptions. Regular inspections ensure safety and performance.
