Difference Between Single Stage Gas Pressure Regulator vs. Two Stage Gas Pressure Regulator

Introduction

Gas pressure regulators are essential components in various industrial, commercial, and residential applications where gaseous fuels or process gases need to be delivered at a consistent and safe pressure. These devices function by reducing the high inlet pressure from a gas source, such as a cylinder, pipeline, or storage tank, to a lower outlet pressure suitable for downstream equipment like burners, appliances, or analytical instruments. Without proper regulation, high-pressure gas could damage equipment, pose safety risks, or lead to inefficient operations.

The primary types of gas pressure regulators are single-stage and two-stage models. A single-stage regulator accomplishes the pressure reduction in one step, directly from the high inlet pressure to the desired outlet pressure. In contrast, a two-stage regulator performs the reduction in two sequential steps: the first stage lowers the pressure to an intermediate level, and the second stage further reduces it to the final outlet pressure. This fundamental difference in design leads to variations in performance, reliability, and suitability for specific applications.

Understanding the differences between these two types is crucial for engineers, technicians, and end-users to select the appropriate regulator for their needs. Factors such as pressure stability, droop characteristics, supply pressure variations, and environmental conditions play significant roles in this decision. This article delves into the technical aspects of both regulator types, highlighting their working principles, advantages, disadvantages, and key differences. By the end, readers will have a comprehensive grasp of when and why one might be preferred over the other.

Gas pressure regulators operate based on the principles of fluid dynamics and mechanical equilibrium. They typically include components like a diaphragm, spring, valve seat, and orifice. The diaphragm senses the outlet pressure and adjusts the valve position to maintain the set pressure. In single-stage regulators, this mechanism is straightforward, but it can be susceptible to fluctuations in inlet pressure. Two-stage regulators mitigate this by isolating the second stage from inlet variations, providing more stable output.

The choice between single-stage and two-stage regulators often boils down to the application’s demands for precision and consistency. For instance, in laboratory settings where precise pressure control is vital for experiments, or in industrial processes where gas flow must remain steady despite supply changes, the two-stage option might be indispensable. Conversely, for simpler setups with stable inlet pressures, a single-stage regulator suffices, offering cost savings and simplicity.

Working Principle of Single-Stage Gas Pressure Regulators

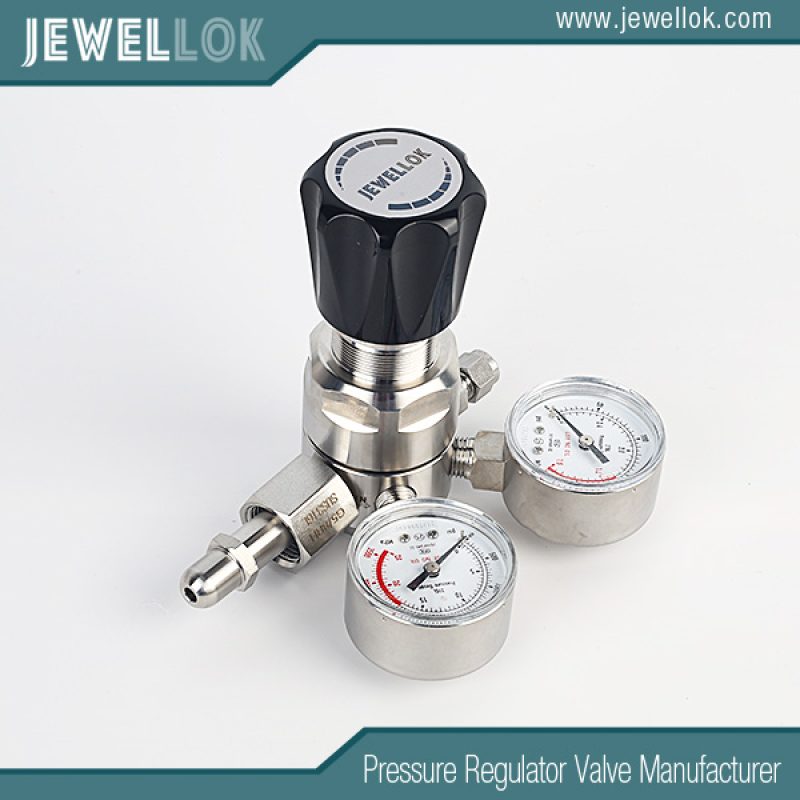

A single-stage gas pressure regulator is designed to reduce gas pressure in a single operation. It consists of a high-pressure inlet port connected to the gas source, a low-pressure outlet port leading to the application, and an internal mechanism that controls the flow.

At the core of its operation is a spring-loaded diaphragm assembly. The inlet gas enters the regulator body at high pressure and passes through a valve orifice. The diaphragm, positioned above the valve, is balanced by a setpoint spring on one side and the outlet pressure on the other. When the outlet pressure drops below the setpoint (due to increased demand downstream), the spring pushes the diaphragm downward, opening the valve to allow more gas flow, thereby increasing the outlet pressure back to the setpoint. Conversely, if the outlet pressure rises above the setpoint (due to decreased demand), the diaphragm moves upward, closing the valve and reducing flow until equilibrium is restored.

This feedback loop ensures that the regulator maintains a relatively constant outlet pressure. However, the single-stage design has inherent limitations. One key issue is “droop,” which refers to the decrease in outlet pressure as flow rate increases. Droop occurs because the spring must compress further to open the valve wider, effectively reducing the force counteracting the outlet pressure. In technical terms, droop can be quantified as the percentage change in outlet pressure from no-flow to full-flow conditions. For a typical single-stage regulator, droop might range from 5% to 15%, depending on the model and sizing.

Another challenge is the regulator’s sensitivity to inlet pressure variations. If the supply pressure decreases (e.g., as a gas cylinder empties), the regulator must open the valve more to maintain the outlet pressure, which can lead to instability or lock-up issues. Lock-up happens when the valve closes completely at zero flow, and the outlet pressure rises slightly above the setpoint due to minor leaks or thermal effects.

Single-stage regulators are commonly available in various materials, such as brass, stainless steel, or aluminum, to suit different gases like oxygen, acetylene, propane, or natural gas. They often include safety features like relief valves to vent excess pressure and gauges for monitoring inlet and outlet pressures.

Advantages of single-stage regulators include their compact size, lower cost, and ease of installation. They are ideal for applications where the inlet pressure is stable and the flow rate does not vary drastically. For example, in welding torches or portable gas grills, where the gas cylinder provides a consistent supply pressure until near depletion, single-stage models perform adequately.

However, disadvantages become apparent in demanding scenarios. Fluctuating inlet pressures can cause corresponding variations in outlet pressure, potentially affecting process efficiency or safety. In high-flow applications, excessive droop can lead to under-pressure conditions, starving downstream equipment. Maintenance is also a consideration; single-stage regulators may require more frequent adjustments or replacements in variable environments.

To illustrate, consider a scenario in a manufacturing plant using compressed air for pneumatic tools. If the air compressor cycles on and off, causing inlet pressure swings, a single-stage regulator at the tool might not maintain consistent pressure, leading to erratic tool performance. Engineers often oversize single-stage regulators to minimize droop, but this can increase costs and reduce precision.

Working Principle of Two-Stage Gas Pressure Regulators

Two-stage gas pressure regulators address the limitations of single-stage designs by dividing the pressure reduction process into two phases, providing enhanced stability and performance.

The first stage operates similarly to a single-stage regulator but reduces the high inlet pressure to a fixed intermediate pressure, typically around 10-20 psi above the final setpoint. This intermediate pressure is then fed into the second stage, which further reduces it to the desired outlet pressure. The two stages are housed in a single body or sometimes connected in series, but integrated designs are more common for compactness.

In the first stage, a smaller diaphragm and spring handle the bulk of the pressure drop. Since the intermediate pressure is fixed, it acts as a stable “supply” for the second stage. The second stage, with its own diaphragm and adjustable spring, fine-tunes the pressure to the setpoint. This isolation means that variations in the inlet pressure primarily affect the first stage, while the second stage experiences minimal fluctuations, resulting in superior outlet pressure stability.

Droop in two-stage regulators is significantly reduced, often to less than 1-2%, because the second stage operates with a consistent inlet pressure. This makes them suitable for applications requiring precise control over a wide range of flow rates. Additionally, two-stage models exhibit better resistance to supply pressure effects (SPE), where outlet pressure changes due to inlet variations are negligible.

Components in two-stage regulators include dual diaphragms, valves, and springs, often with vent ports for safety. Materials are chosen based on gas compatibility, with options for corrosive gases like ammonia or chlorine.

Advantages are numerous: excellent pressure stability, minimal droop, and reliability in variable inlet conditions. They are preferred in laboratories for gas chromatography, where even slight pressure changes can skew results, or in medical oxygen delivery systems requiring constant flow.

Disadvantages include higher cost, increased complexity, and larger size compared to single-stage counterparts. Maintenance might involve servicing both stages, and improper setup can lead to issues like hunting (oscillating pressure).

For example, in a natural gas distribution system, where pipeline pressure can fluctuate due to demand peaks, a two-stage regulator at the service entrance ensures steady pressure to household appliances, preventing pilot light extinguishment or burner inefficiency.

Key Differences Between Single-Stage and Two-Stage Regulators

When comparing single-stage and two-stage gas pressure regulators, several technical parameters highlight their distinctions.

Design and Construction: Single-stage regulators have a simpler design with one diaphragm and valve assembly, making them lighter and more compact. Two-stage models feature dual assemblies, increasing complexity but enhancing functionality. This results in two-stage regulators being bulkier, often 20-50% larger, which can be a factor in space-constrained installations.

Pressure Stability and Droop: As mentioned, droop is a major differentiator. Single-stage regulators suffer from higher droop, which can be modeled as ΔP_out = (Flow_rate * Regulator_constant), where the constant depends on spring rate and orifice size. In two-stage designs, the effective droop is the product of both stages’ droops, significantly lower. For instance, if each stage has 5% droop, the overall might be under 0.25%.

Response to Inlet Variations: Single-stage regulators exhibit outlet pressure changes proportional to inlet changes, quantified by SPE = ΔP_out / ΔP_in. Values might be 0.1-0.5 psi per 100 psi inlet change. Two-stage regulators have SPE near zero, as the first stage absorbs variations.

Flow Capacity and Sizing: Both types are sized based on capacity curves, plotting outlet pressure vs. flow. Single-stage curves show steeper droop slopes, requiring larger sizes for high flows. Two-stage curves are flatter, allowing smaller sizes for equivalent performance.

Cost and Maintenance: Single-stage regulators are typically 30-50% cheaper due to fewer parts. Maintenance is simpler, often just diaphragm replacement. Two-stage models cost more but may last longer in harsh conditions, with maintenance involving both stages.

Applications: Single-stage are suited for stable, low-variation setups like fixed gas cylinders or short-duration uses. Two-stage excel in dynamic environments, such as bulk gas storage with depleting pressures or processes with variable demands.

Safety Considerations: Both include relief valves, but two-stage offer better overpressure protection due to staged reduction. In explosive gas handling, two-stage reduce risk of flashback or ignition by maintaining precise control.

Performance Metrics: Efficiency is higher in two-stage for energy conservation in compressed gas systems. Noise and vibration are lower in two-stage due to smoother operation.

Conclusion

In summary, the choice between single-stage and two-stage gas pressure regulators hinges on the specific requirements of the application. Single-stage regulators provide a cost-effective, straightforward solution for scenarios with stable inlet pressures and moderate flow variations. Their simplicity makes them ubiquitous in everyday uses like propane barbecues or basic industrial tools. However, for applications demanding high precision, such as scientific instrumentation, medical gas delivery, or large-scale industrial processes, two-stage regulators are superior due to their enhanced stability, reduced droop, and resilience to inlet fluctuations.

Engineers should evaluate factors like inlet pressure range, required outlet stability, flow rates, and budget when selecting a regulator. Proper installation, including filters to prevent contaminants and regular inspections, ensures longevity for both types. Advances in materials and smart sensors are blurring some differences, with hybrid designs emerging, but the core distinction remains rooted in their staged vs. direct pressure reduction approaches.

Ultimately, understanding these differences empowers better system design, enhancing safety, efficiency, and performance across diverse gas-handling applications. Whether opting for the economical single-stage or the robust two-stage, the goal is always reliable gas delivery tailored to the task at hand.
