Laboratory Technician’s Pitfall Avoidance Guide: Gas Manifold Systems for Laboratory Instruments

In the high-stakes environment of a laboratory, where precision, safety, and reliability are paramount, gas manifold systems play a critical role in delivering gases to analytical instruments like gas chromatographs, mass spectrometers, and atomic absorption spectrometers. These systems ensure a consistent supply of high-purity gases such as helium, nitrogen, or argon, which are essential for accurate results in research, quality control, and testing. However, laboratory technicians often face pitfalls when selecting, installing, operating, or maintaining gas manifold systems. A single misstep—whether choosing an incompatible manifold, neglecting maintenance, or overlooking safety protocols—can lead to contaminated samples, skewed data, equipment damage, or even hazardous incidents like gas leaks or explosions.

The importance of avoiding these pitfalls cannot be overstated. According to industry insights, improper gas handling in laboratories can result in costly downtime, compromised experiments, and safety violations that breach standards set by organizations like the Occupational Safety and Health Administration (OSHA) or the Compressed Gas Association (CGA). For laboratory technicians, mastering the use of gas manifolds is not just about technical know-how; it’s about safeguarding the integrity of scientific work and ensuring a safe workplace. This comprehensive 2000-word guide serves as a pitfall avoidance roadmap, detailing the selection, installation, operation, and maintenance of gas manifold systems for laboratory instruments. By addressing common mistakes and offering practical solutions, we aim to empower technicians to achieve flawless gas delivery, leaving no room for errors that could derail experiments or compromise safety.

From gas compatibility issues to regulatory non-compliance, the challenges are numerous, but with the right knowledge, they are avoidable. Whether you’re a seasoned technician or new to the lab, this guide will walk you through the essentials, helping you sidestep pitfalls and maintain a robust, reliable gas supply system. Let’s dive into the critical aspects of gas manifolds and how to navigate their complexities with confidence.

Understanding Gas Manifolds in the Laboratory

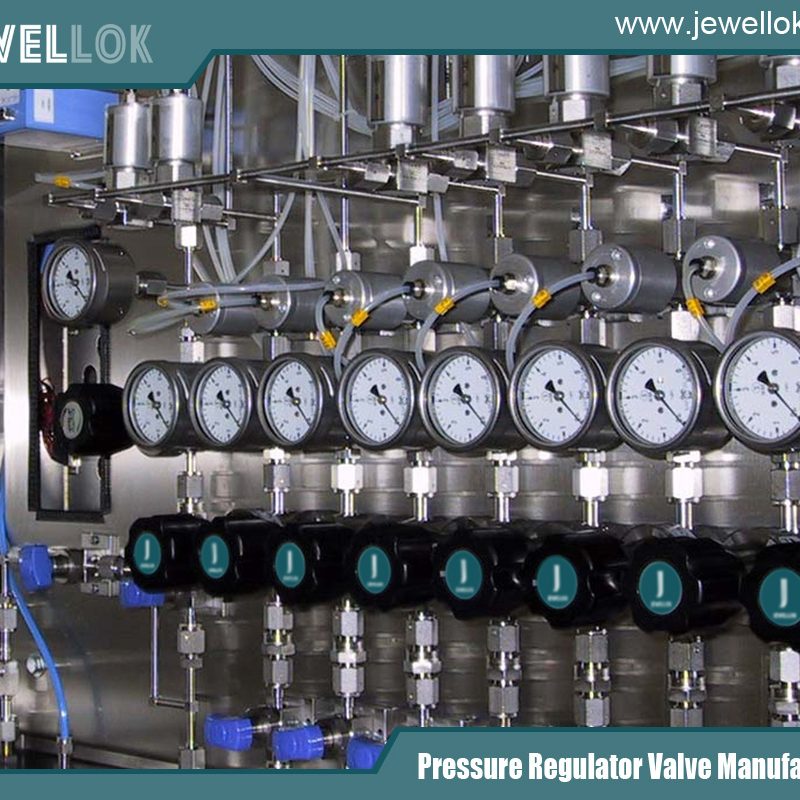

A gas manifold system is a centralized setup that connects multiple gas cylinders or bulk sources to laboratory instruments, ensuring a continuous and controlled supply of gases. These systems typically include components like regulators, valves, pressure gauges, filters, and tubing, all designed to maintain gas purity and precise pressure delivery. In laboratories, manifolds are used to supply gases for applications such as gas chromatography (GC), where helium acts as a carrier gas, or inductively coupled plasma (ICP) systems, which rely on argon for plasma generation.

There are three main types of gas manifolds: manual, semi-automatic, and fully automatic. Manual manifolds require technicians to switch cylinders when one depletes, suitable for low-volume labs but prone to human error. Semi-automatic systems use pressure sensors to switch between cylinders, reducing downtime and operator intervention. Fully automatic manifolds, equipped with advanced controls, are ideal for high-throughput labs, offering seamless switchovers and real-time monitoring. Each type must maintain high purity—often 99.999% (5N) or higher—to prevent contamination that could skew analytical results.

How do they work? Gas flows from cylinders through high-purity tubing (typically 316L stainless steel) to regulators that reduce pressure to instrument-specific levels (e.g., 30-100 psi for GC systems). Filters remove particulates, and purge valves eliminate residual contaminants during cylinder changes. Check valves prevent backflow, while pressure transducers provide real-time data. For specialty gases, manifolds may include additional features like moisture traps or oxygen scrubbers to ensure purity.

Common laboratory gases include helium (for GC), nitrogen (for purging), and hydrogen (for flame ionization detectors). Each has unique handling requirements—hydrogen, for instance, is flammable, necessitating explosion-proof fittings. Understanding these basics is the first step in avoiding pitfalls, as mismatches in system design or gas type can lead to catastrophic failures.

Common Pitfalls and How to Avoid Them

Laboratory technicians encounter several pitfalls when working with gas manifolds. Here’s a detailed look at the most common issues and strategies to avoid them:

1. Incompatible Manifold Selection

Pitfall: Choosing a manifold not suited for the gas type or instrument requirements. For example, using a brass manifold for corrosive gases like ammonia can lead to component degradation and contamination. Similarly, selecting a low-pressure regulator for a high-pressure application can cause flow inconsistencies.

Avoidance: Verify gas compatibility using CGA standards and match regulator pressure ranges to instrument specifications. For corrosive gases, opt for stainless steel or Monel components. Consult supplier documentation and confirm purity requirements (e.g., 5N for analytical work).

2. Neglecting Purity Requirements

Pitfall: Failing to maintain gas purity, leading to contaminated samples. Trace impurities like moisture or oxygen can alter results in sensitive instruments like mass spectrometers. Using non-electropolished tubing or skipping purges during cylinder changes exacerbates this.

Avoidance: Select manifolds with electropolished 316L stainless steel tubing and high-purity filters (0.003-micron rating). Implement a purge protocol using inert gas (e.g., nitrogen) before and after cylinder changes. Consider systems with built-in gas analyzers for real-time purity monitoring.

3. Improper Installation

Pitfall: Incorrect installation, such as loose fittings or improper cylinder connections, can cause leaks or pressure drops. Installing manifolds in poorly ventilated areas risks gas accumulation, especially for toxic or flammable gases.

Avoidance: Follow manufacturer installation guidelines and use high-purity, CGA-compliant fittings. Install in a well-ventilated area compliant with OSHA or NFPA standards. Use helium leak detectors (sensitivity 10^-9 atm-cc/s) to verify connections.

4. Inadequate Maintenance

Pitfall: Skipping regular maintenance leads to clogged filters, worn seals, or regulator failures, compromising purity and pressure control. Infrequent leak checks can allow undetected leaks to persist.

Avoidance: Implement a maintenance schedule: daily visual inspections, monthly filter replacements, and annual professional servicing. Log all maintenance for regulatory compliance. Avoid using non-certified replacement parts, as they risk contamination.

5. Ignoring Safety Protocols

Pitfall: Overlooking safety features or training can lead to hazardous incidents. For example, handling flammable gases like hydrogen without explosion-proof fittings or neglecting Material Safety Data Sheets (MSDS) can result in fires or toxic exposures. Avoidance: Equip manifolds with safety features like pressure relief valves, check valves, and leak monitors. For flammable gases, include flashback arrestors. Train technicians on MSDS and emergency procedures. Ensure compliance with local safety regulations.

6. Overlooking Automation Needs

Pitfall: Relying on manual manifolds in high-throughput labs can lead to downtime during cylinder changes, disrupting experiments. Manual systems also increase the risk of human error.

Avoidance: Choose semi-automatic or fully automatic manifolds for busy labs. These systems use pressure sensors or electronic controls to switch cylinders seamlessly, minimizing interruptions. Look for models with alarms or digital interfaces for real-time monitoring.

7. Regulatory Non-Compliance

Pitfall: Failing to meet standards like CGA, ISO 14644, or SEMI can result in fines or failed audits. Homemade or uncertified manifolds often lack compliance, posing risks. Avoidance: Select manifolds with documented certifications from reputable manufacturers. Verify compliance with cleanroom standards (e.g., ISO Class 5) if applicable. Maintain records of system performance and maintenance for audits.

By addressing these pitfalls, technicians can ensure reliable gas delivery and a safe laboratory environment.

Key Selection Criteria

To avoid pitfalls, selecting the right manifold is critical. Consider these factors:

1. Gas Type and Purity: Match the manifold to the gas (e.g., helium, nitrogen) and required purity (5N or higher). Use stainless steel for corrosive gases and electropolished components for ultra-high purity.
2. Pressure and Flow Requirements: Ensure regulators support the instrument’s pressure range (e.g., 50 psi for GC). High-flow manifolds are needed for multi-instrument setups.
3. Material Quality: Opt for 316L stainless steel or Monel for durability and purity. Avoid brass for reactive gases.
4. Automation Level: Choose automatic systems for high-throughput labs to reduce downtime.
5. Safety Features: Include purge valves, relief valves, and leak monitors. For flammable gases, ensure explosion-proof components.
6. Scalability: Select modular systems for future expansion.
7. Vendor Support: Choose suppliers with robust technical support and spare parts availability.

Installation Best Practices

Proper installation prevents many pitfalls:

• Location: Install in a well-ventilated, clean area compliant with OSHA standards.
• Components: Use high-purity, CGA-compliant tubing and fittings. Avoid makeshift connections.
• Purging: Purge the system with inert gas before commissioning to remove contaminants.
• Leak Testing: Use helium leak detectors to verify integrity.

Maintenance and Monitoring

Regular maintenance is key to avoiding issues:

• Daily: Check for leaks and monitor pressure gauges.
• Monthly: Replace filters and inspect seals.
• Annually: Schedule professional servicing for regulators and valves.
• Monitoring: Use systems with real-time pressure and purity sensors for proactive issue detection.

Conclusion

Gas manifold systems are vital for laboratory success, but pitfalls abound without careful planning. By selecting compatible, high-quality manifolds, adhering to safety and maintenance protocols, and ensuring regulatory compliance, technicians can avoid costly errors and maintain a safe, efficient lab. This guide equips you to navigate the complexities of gas manifolds, ensuring your instruments perform flawlessly and your experiments yield reliable results.
