High Purity High Flow Pressure Control Regulators & Valves Gas Stick Assemblies JSR-2TG Series

Product Features

• Wall-mounting tapping points
• JSR-2EL series single-stage regulator
• Stainless steel 316L body and bonnet for corrosive gases
• Modular design
• Diaphragm type shut-off vlaves
• Suitable for inlet pressure up to 100 bar
• Tested for use with oxygen

Typical Applications

• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment

Technical Data

Type:	single-stage
Inlet pressure P1:	max. 300 bar
Outlet pressure P2:	2/4/10/20/50 bar
Materials
Body regulator and valves:	see ordering info
Valve seat (regulator):	PCTFE
(shut-off valve):	PEEK
Diaphragm (regulator):	Hastelloy® C276
(valve):	Hastelloy® C276
O-ring:	Viton® (FKM)
(option)	Kalrez® (FFKM)
Filter:	SS 316L
Temperature range:	-30℃ to +74℃
Leak rate (to atmosphere):	1×10^-8 mbar I/s He
(via seat):	1×10^-6 mbar I/s He

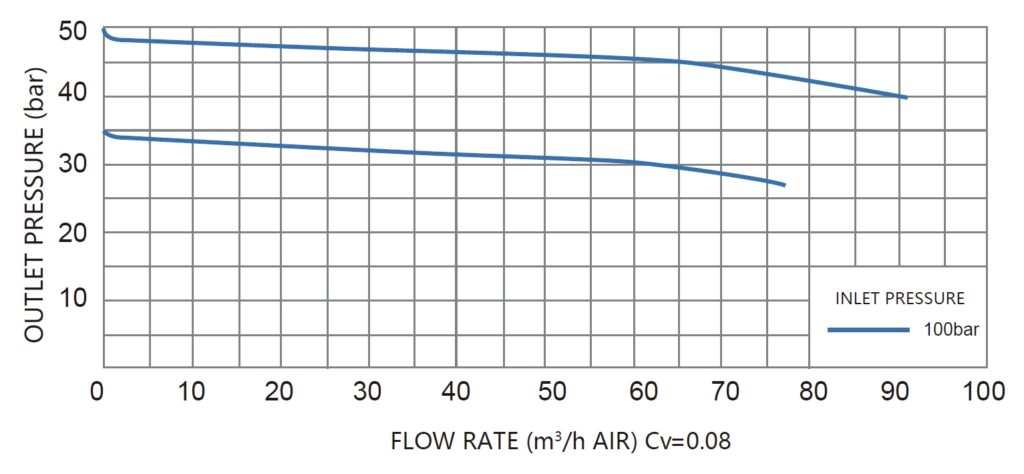

Flow capacity:
(Outlet pressure:2/4/10/20 bar)	Cv=0.28
(Outlet pressure:35/50 bar)	Cv=0.08
Weight:	4.5~6.9kg
