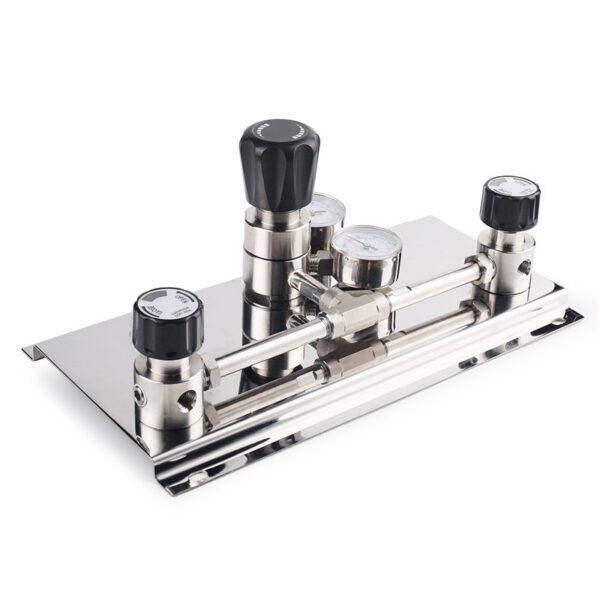

High Purity Semi-Auto Stainless Steel Changeover Manifold System, Nitrogen High Pressure Control Panel With Semiconductor Valve Manifold Box Diaphragm Valves
Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Jewellok
Certification: CE
Model Number: JW-400
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 5000 Set/Sets per Week
Highlight:
gas control panel,
automatic switchover manifold
|
Max Inlet Pressure:
|
2200, 3000 Psig
|
Outlet Pressure Range:
|
0~25, 0~50, 0~100, 0-150, 0~200 Psi
|
|
Working Temperature:
|
-40° F ~+165° F(-40°C+74°C)
|
Cv:
|
0.14
|
|
Valve Seat:
|
FCTFE
|
Body Material:
|
SS 316L
|
|
Diaphragms:
|
316L
|
Port:
|
SHENZHEN
|
A High Purity Semi-Auto Stainless Steel Changeover Manifold System is designed for seamless gas supply management in critical applications, such as semiconductor manufacturing, pharmaceuticals, and laboratory environments. Constructed from high-grade stainless steel, the system ensures corrosion resistance, durability, and compatibility with high-purity gases, minimizing contamination risks.
The semi-automatic changeover mechanism enables uninterrupted gas flow by switching between primary and reserve gas sources when pressure drops below a set threshold. This ensures continuous operation without manual intervention, enhancing efficiency and safety. The system typically includes pressure regulators, gauges, and isolation valves, all optimized for precise control and monitoring.
Key features include a compact design for easy integration, leak-tight connections, and compliance with stringent industry standards (e.g., SEMI or ISO). The stainless steel construction supports ultra-high purity requirements, with electropolished surfaces reducing particle generation. Safety interlocks and alarms may be incorporated to alert users of low pressure or system faults.
Maintenance is straightforward, with modular components allowing quick servicing. The system supports various gases, including nitrogen, argon, and hydrogen, making it versatile for diverse applications. By ensuring reliability and purity, this manifold system is essential for processes demanding consistent, high-quality gas delivery.
Product Features
*Equipped Jewellok pressure regulator and high pressure ball valve
*Pressure regulator and pipe through the pressure test and leakage test
*Wall installation, easy to use and safe
*2″ stainless steel pressure gauge, reading clearly
Product Specifications
Typical applications
1) Laboratory
2) Gas Chromatography
3) Gas Laser
4)Tested instrumentation
Packing & Delivery
|
Packaging
|
|
|
Size
|
Decided on the product
|
|
Weight22
|
2KGS |
|
Packaging Details
|
Export packing or according customer’s request.
|
