Organic Chemical Automatic Liquid Supply System Chemical Delivery And Waste Collection Systems CDS And CDM

Organic Chemical Automatic Liquid Supply System Chemical Delivery And Waste Collection Systems CDS And CDM

Shenzhen Jewellok Technology Co., Ltd. provides advanced ultra-high purity (UHP) chemical handling solutions, including chemical delivery module (CDM) and chemical delivery system (CDS). Jewellok’s CDS and CDM automate high-purity chemical handling. Use the CDS for bulk transport from storage to the facility via electropolished 316L piping. Use the CDM for precise blending and dilution at the point-of-use. Both systems ensure safety and purity through automated leak detection and non-contact level monitoring.

Technical Data

Model	JW-200L-CDM,JW-1000L-CDM
Special gas cabinet size	W2200D1500H2000(double drums)/W2990D2100H2000(double drums)
Control cabinet power supply	220VAC, 50HZ, 0.5～3KW, leakage protection
Purge	PN2,SS316 1/2″SWG
Ultra-pure water	UPW, JIS 16A bonding
Compressed air	CDA,SS316 1/2″SWG
Waste outlet	Drain,PP DN20 Fusion Socket/Drain,PP DN25 Fusion Socket
Standard equipment	PP shell + transparent PVC observation window + PFA internal pipe valve, nitrogen purging, sampling, fully automatic acid supply, automatic switching of left and right barrels. The pump body has two uses and one backup. It can automatically switch the liquid supply operation according to the liquid level in the barrel. The touch screen can display the working status of each valve and the liquid supply status of the pipeline. Automatically cut off the fluid supply, early warning and alarm of the operating status of each part of the system, self-check and confirmation of multiple safety, simple system, and supports multiple languages, supports multiple signal inputs, code scanner, high-efficiency filter, door sensor Optional

*Emergency manual operation panel
*High efficiency filter
*Door sensor

Speciality Chemicals Handled
HF- Hydrofluoric acid
HCL- Hydrochloric acid
H2O2- Hydrogen Peroxide
KOH- Potassium Hydroxide
HNO3- Nitric acid
NH4OH- Ammonium Hydroxide
H2SO4- Sulfuric acid

CDM and CDS Application:
Semiconductor
Photovoltaic
Solar energy
Liquid crystal panel
Optical fiber
Other production fields

Function Of CDM and CDS:
Chemical filtration
Chemical sampling
Chemical circulation
Chemical delivering

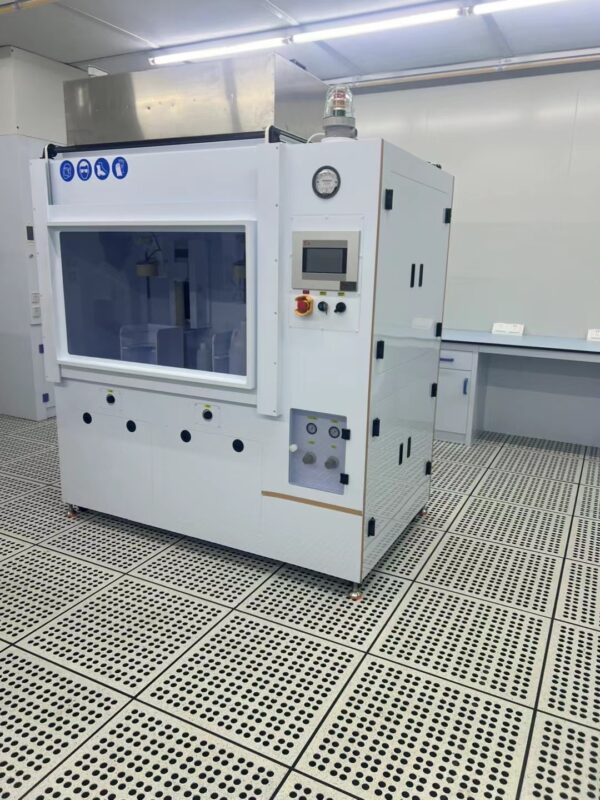

Fluid Chemical Delivery Module And Chemical Delivery System

chemical delivery module (CDM) and chemical delivery system (CDS)

In modern semiconductor and chemical manufacturing, handling organic solvents requires a closed-loop approach that prioritizes safety, purity, and environmental responsibility. An Integrated Organic Chemical Automatic Liquid Supply System manages the entire lifecycle of a chemical, from initial delivery to final waste recovery.

Automatic Liquid Supply and Delivery (CDS)

The supply side of the system is designed to transport organic chemicals—such as photoresists, thinners, and cleaning solvents—from bulk storage tanks or drums to the production line. To prevent fire hazards common with organic materials, these systems often use explosion-proof components and nitrogen blanketing to displace oxygen.

The delivery modules utilize UHP (Ultra-High Purity) piping, typically made of PFA or electropolished stainless steel, to ensure zero metallic contamination. High-precision sensors and non-contact level monitors track chemical usage in real-time, triggering automatic changeovers between supply barrels to ensure the manufacturing process never runs dry.

Chemical Delivery/Dilution (CDM)

Before reaching the wafer, many organic chemicals require precise mixing. The CDM automates this by blending concentrated solvents with DI water or other additives. By using automated recipe control, the system eliminates human error, ensuring that every batch meets the exact concentration required for consistent etching or stripping results.

Waste Collection Systems

The process concludes with the Waste Collection System. Once chemicals are used, they are automatically diverted into dedicated waste streams based on their composition. This segregation is critical for preventing dangerous chemical reactions and facilitating solvent recovery. Automated pumps move the waste into specialized storage tanks equipped with leak detection and vapor recovery units, ensuring that no toxic fumes escape into the facility.

By integrating supply, delivery, and waste collection into a single automated loop, manufacturers achieve a “hands-off” environment that maximizes operator safety while maintaining the extreme purity levels demanded by the industry.
