Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Jewellok

Certification: CE

Model Number: JW-300

Payment & Shipping Terms

Minimum Order Quantity: >=1 Sets

Price: Negotiable

Packaging Details: Export packing

Supply Ability: 5000 Set/Sets per Week



Specifications
Highlight: gas control panel ,  automatic switchover manifold
Max Inlet Pressure:
2200, 3000 Psig
Outlet Pressure Range:
0~25, 0~50, 0~100, 0~150 , 0~250psig
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Cv:
0.14
Valve Seat:
PU, PTFE ,FCTFE
Body Material:
316L
Diaphragms:
316L
Pressure Gauge Size:
2″
Port:
SHENZHEN
Description
Semi Automatic And Automatic Switching Speicialty Gas Changeover Manifold Panel With Semiconductor Valve Manifold Box Gas Pressure Regulators

Product Description

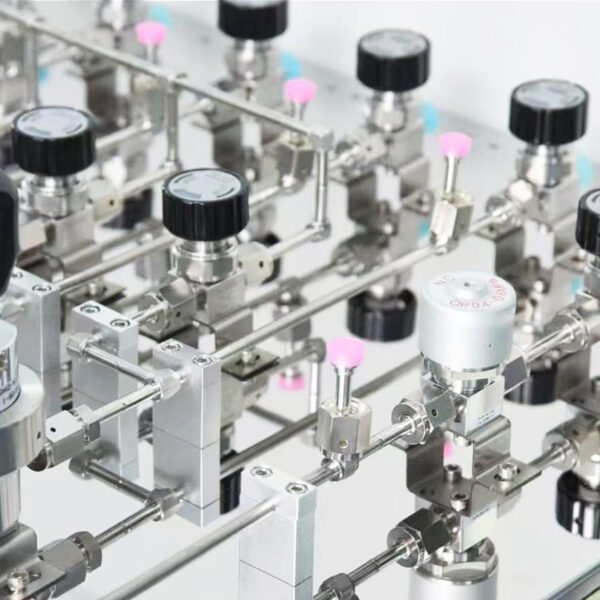

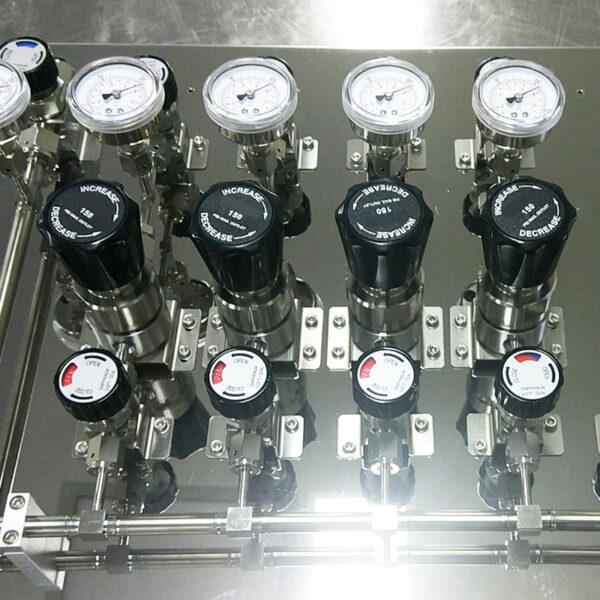

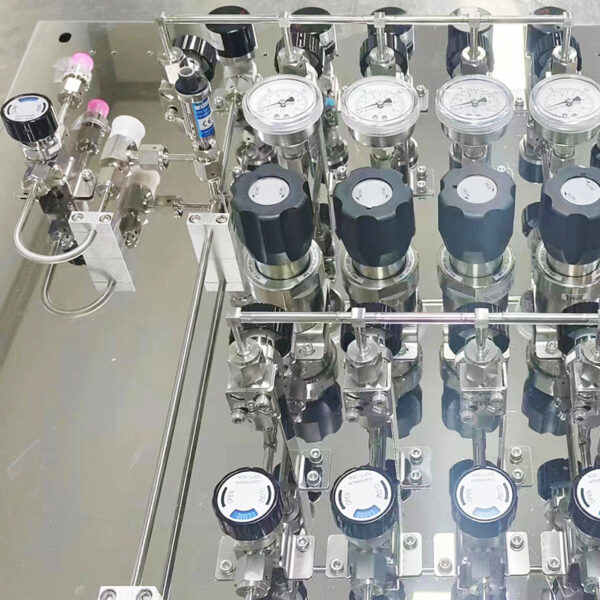

JW-300 Series Semi-automatic Changeover Device

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides,
through the automatic changeover to realize continuous gas supply, with the function of purging.
The maximum input pressure of 20.7Mpa (3000psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.
Product Specifications

1) Max. Inlet Pressure: 3000, 2200Psi

2) Max. Outlet Pressure: 25, 50, 100, 150, 0~250Psi

3)Working Temperature: -40℃~74℃(-40℉~165℉)

4) Leakage rate: 2 x 10-8 atm.cc/sec He

5)Cv: 0.08

Design Features

1) Pressure regulator for special gas

2) Equipped relief pressure valve

3)Pressure regulator and pipe through the pressure test and leakage test

4)2″ stainless steel pressure gauge, reading clearly

5) The knob of diaphragm valves with on/off logo.

Material List
Body material
Stainless steel 316L
Valve Seat
PU, PTFE, PCTFE
Diaphragm
Stainless steel 316L
Inlet connection
1/4″ NPT (F)
Outlet connection
1/4″ NPT (F)
Related Products

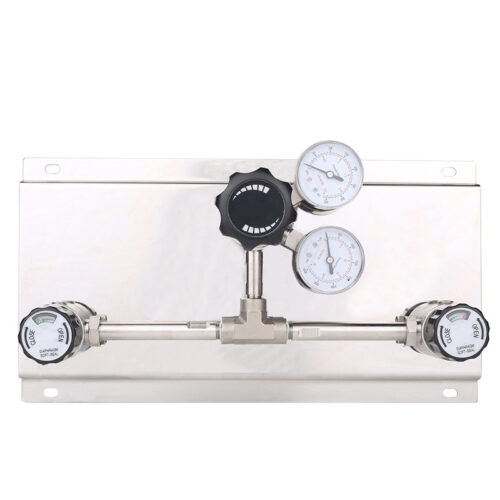

High pressure 3000psi Argon gas pressure regulator with panel mount
Model: R12 pressure regulator

1) Single -stage pressure reducing Structure.
2) Metal-to-metal diaphragm seal.
3) Body Thread : 1/2“ NPT ( F )
4) Pressure gauge, safety valve interface : 1/4″ NPT ( F )
5) Filter element installed internally
6) Panel mountable or wall mounting available

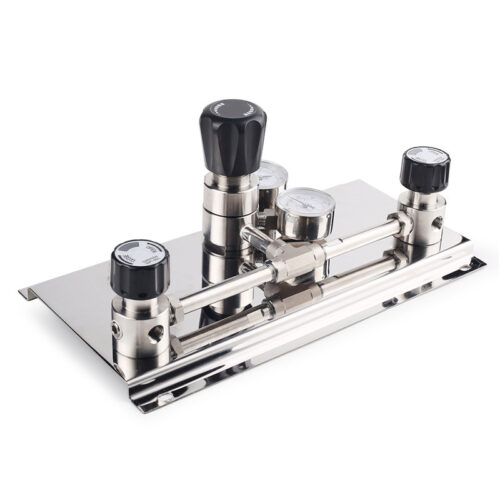

High pressure regulator 1/4″NPT Female gas Two stage Argon gas pressure regulator

Model: Jewellok gas pressure regulator

1) Five hole design of the body
2) Two -stage reduce Structure.
3) Use hard-seal between body and diaphragm
4) Body Thread: input and output connection 1/4“ NPT F
5) Easy to sweep inside body
6) Filter element installed internally
7) Panel mountable or wall mounting available
8)Optional outlet : needle valve , diaphragm valve
