Ultra High Purity Stainless Steel Compressed Gas Changeover Manifold Panel System For Integrated Gas Supply System
Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Jewellok
Certification: CE
Model Number: JW-200
Payment & Shipping Terms
Minimum Order Quantity: 1 – 9 Pieces
Price: Negotiable
Packaging Details: Each piece with a PP bag first, then put in a small box, outside is in carton.
Supply Ability: 3000 Piece/Pieces per Week
Specifications
Highlight: Gas control manifold panel, pressure control panel
|
Material:
|
316L SS
|
Maximum Inlet Pressure:
|
3000, 2200, 500PSI
|
|
Output Pressure:
|
0-25,0-50,0-100, 0-250, 0-500PSI
|
Working Temperature:
|
-23~+74 Deg C
|
|
Applied Gas:
|
Pure Gases, Standard Gases, Corrosive Gases And So On
|
Bonnet Material:
|
Ss316L
|
|
Seat:
|
PCTFE
|
Spring:
|
Ss316L
|
|
O-ring:
|
Viton
|
Strainer:
|
316L (um)
|
Description
Ultra High Purity Stainless Steel Compressed Gas Changeover Manifold Panel System For Integrated Gas Supply System

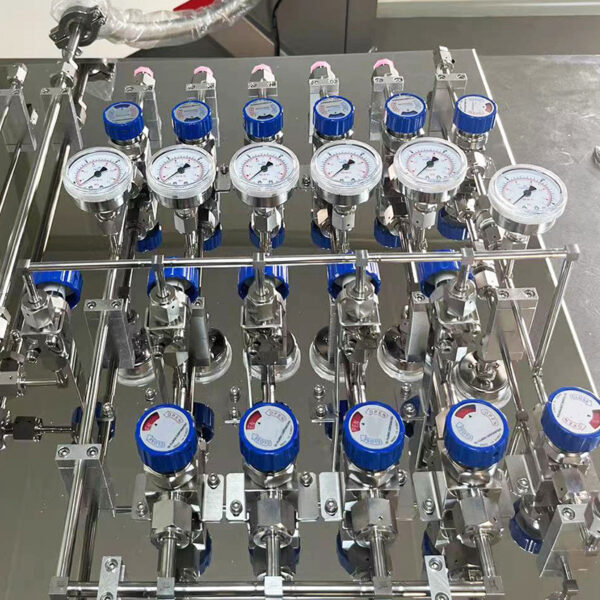

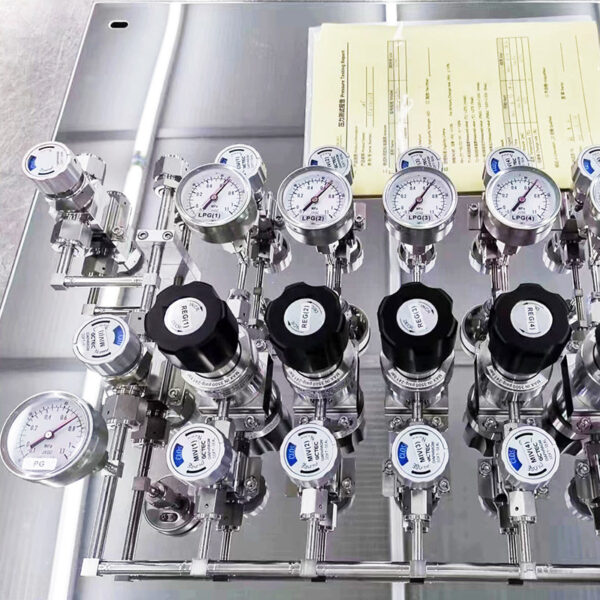

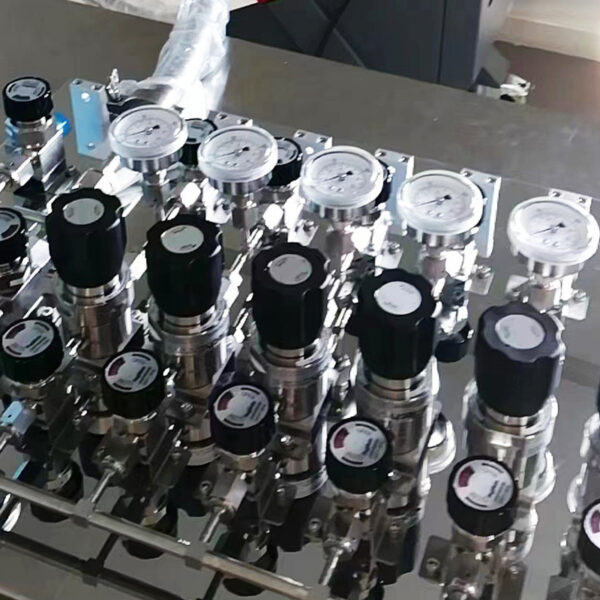

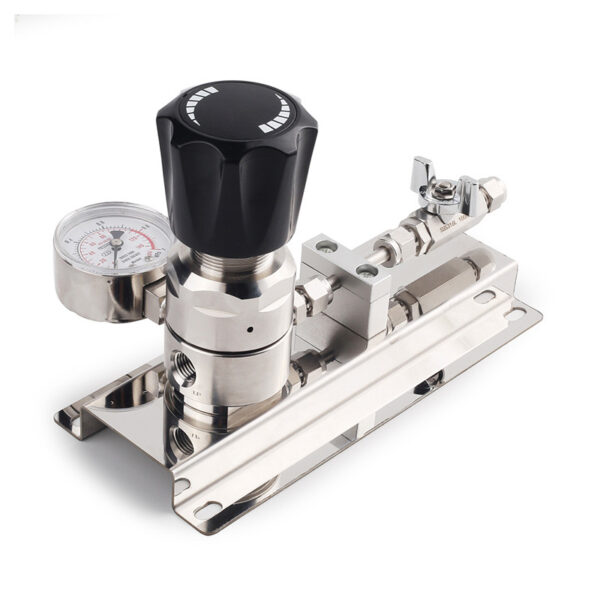

JW-200 Series Terminal Secondary Pressure reducing Regulator Assembly
It is Applied to the gas pipeline terminal, easy to use the control gas flow size. Maximum input pressure up to 20.7 Mpa(3000 psig), corrosion resistance, clean shop assembly test, and suitable for laboratory, gas analysis and other high purity gas.
Technical parameters
|
Maximum Inlet Pressure
|
500,3000psig
|
||
|
Outlet Pressure Ranges
|
0~25, 0~50, 0~50,0~250,0~500psig
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
|
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
||
|
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
|
Cv value
|
0.08
|
||
Material of Parts
|
Body
|
316L
|
||
|
Bonnet
|
316L
|
||
|
Diaphragm
|
316L
|
||
|
Strainer
|
316L(10mm)
|
||
|
Seat
|
PCTFE,PTEE,Vespel
|
||
|
Spring
|
316L
|
||
|
Plunger valve core
|
316L
|
||
| Selection Table | |||||||
| 2 | 1 | 5 | H | S | 1 | N2 | |
| Series | Inlet connection | Outlet connection | Body | Inlet pressure | outlet pressure | Gauge | N2 |
| JW-200 | 1:6mm barb fitting | 1: 1/4″ welding | s: ss316 | H:1000PSI | 1:25PSI | 1:Mpa | O2 |
| 2:1/4″O.D. | 2: 3/8″welding | C:nickel plated brass | M:500psi | 2:50PSI | 2:bar/PSI | H2 | |
| 3:8mm barb fitting | 5.1/2″ welding | L:300PSI | 3:100PSI | 3:PSI/kpa | C2H2 | ||
| 4:3/8″O.D. | 7: 1/4″O.D. | 4:150PSI | CH4 | ||||
| 5:10mm barb fitting | 8:3/8″O.D. | 5:250PSI | AR | ||||
| 6:1/2″O.D. | 9: 1/2″O.D. | HE | |||||
| Air | |||||||
Pls inform us your ordering requirement.
