Specialty Gas Manifold Will Be More Precise Distribution and Safety Explosion-Proof

In the realm of industrial and scientific applications, the management of specialty gases—high-purity substances such as helium, argon, nitrogen, and various gas mixtures—plays a critical role in ensuring operational efficiency, product quality, and workplace safety. Specialty gas manifolds serve as the backbone of gas distribution systems, facilitating the seamless transfer of these gases from storage cylinders to points of use. These systems are engineered to handle gases with purities often exceeding 99.999%, making them indispensable in sectors like semiconductor manufacturing, pharmaceuticals, laboratories, and petrochemicals.

The title “Specialty Gas Manifold: Precise Distribution and Safety Explosion-Proof” underscores two pivotal aspects: precision in gas delivery and robust safety measures, particularly those designed to mitigate explosion risks. Precise distribution ensures consistent pressure and flow rates, preventing disruptions that could compromise processes such as laser cutting or chemical synthesis. Meanwhile, explosion-proof features address the inherent hazards of handling flammable, oxidizing, or toxic gases, incorporating designs that contain potential ignitions and prevent catastrophic failures.

As industries evolve, the demand for advanced manifolds has surged. For instance, automatic changeover systems minimize downtime by switching between gas sources seamlessly, while integrated safety protocols like leak detection and alarms enhance reliability. According to industry standards, these manifolds must comply with regulations such as ISO 7291 and SEMI S2, ensuring they meet rigorous purity and safety benchmarks. This article delves into the intricacies of specialty gas manifolds, exploring their design, features, applications, and the critical balance between precision and safety.

The evolution of these systems reflects broader technological advancements. Early manifolds were manual and prone to human error, but modern iterations incorporate automation, telemetry, and explosion-resistant materials. In hazardous environments, where gases like ammonia or hydrogen chloride are used, explosion-proof manifolds are not just preferable but essential, reducing risks in zones classified under standards like DIN EN ISO 80079-36. By examining these elements, we can appreciate how specialty gas manifolds contribute to safer, more efficient operations across diverse fields.

What is a Specialty Gas Manifold?

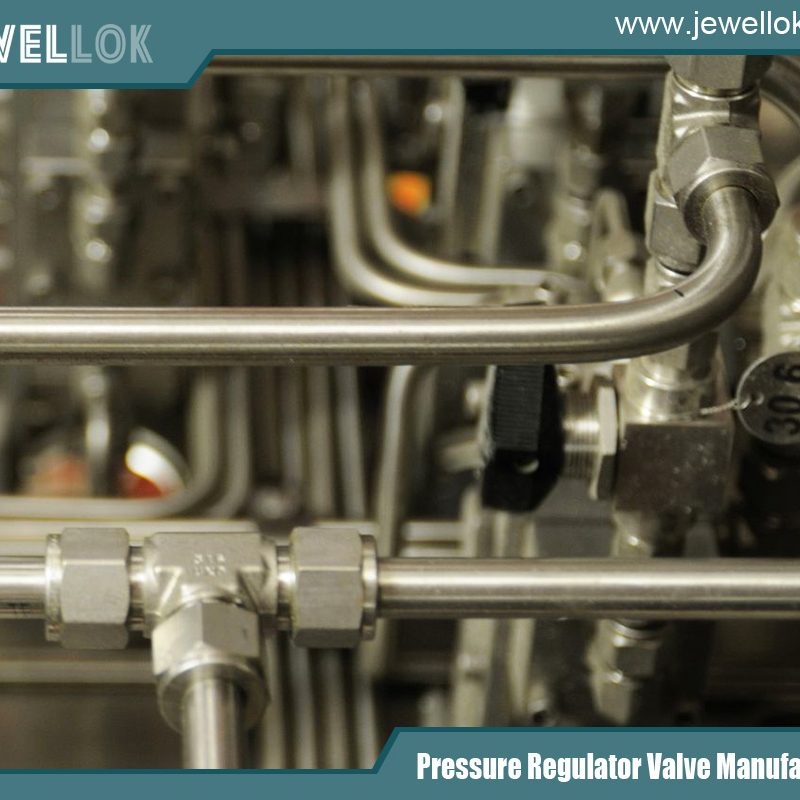

A specialty gas manifold is a sophisticated assembly of valves, regulators, gauges, and piping designed to control and distribute high-purity gases from multiple cylinders or bulk sources to end-user equipment. Unlike standard gas distribution setups, these manifolds are tailored for specialty gases, which require ultra-high purity to avoid contamination that could ruin sensitive processes. They typically include inlet connections for gas cylinders, pressure regulators to step down high cylinder pressures, and outlet lines for delivery. Types of manifolds vary based on application needs. Automatic changeover manifolds, such as the Model S7000 and S9000 series, ensure uninterrupted supply by automatically switching from a depleted primary bank to a reserve bank when pressure drops below a threshold.

These are ideal for compressed gas cylinders and feature components like check valves to prevent backflow and line regulators for stable delivery pressure. Dual-stage manifolds, like the DruvaPUR 20 m3 Series, provide enhanced precision through two regulation stages: the first reduces inlet pressure significantly, and the second fine-tunes the outlet pressure for consistency. This design is particularly suited for pure, inert, and oxidizing gases up to grade 6.0 purity.

Liquid cylinder manifolds, such as the SLIQ and S7000L models, cater to cryogenic applications, incorporating “gas saver circuits” to utilize boil-off gas from reserve banks, minimizing waste. Bulk systems, exemplified by the Megaturion™ line, handle large volumes of hazardous gases like NH₃ or HCl, using PLC-based controllers for automated distribution. Single-stage manifolds offer simpler setups for lower-flow needs, while lab gas panels like the Series 3500 provide modular, point-of-use regulation for indoor environments.

Materials are crucial: brass, stainless steel (often 316L for corrosion resistance), and seals like Teflon or Viton ensure compatibility with various gases. Connections adhere to CGA standards, and gauges monitor pressures accurately. Overall, these manifolds transform potentially chaotic gas handling into a streamlined, reliable process, adapting to specific industrial demands.

Precise Distribution Features

Precision in gas distribution is paramount for applications where even minor fluctuations can lead to defects or inefficiencies. Specialty gas manifolds achieve this through a combination of advanced components and intelligent design, ensuring consistent flow rates, pressures, and purity levels. At the core of precise distribution is the regulator system. Dual-stage regulators, as in high-purity manifolds, provide excellent pressure stability by reducing variability from the source. For example, with inlet pressures up to 300 bar, delivery can be maintained at precise levels like 2-14 bar, supporting flows of 20 m³/h for nitrogen. Automatic changeover mechanisms enhance this by monitoring bank pressures and switching seamlessly, often via a one-knob or lever operation that designates primary and reserve sides. This prevents interruptions, crucial in continuous processes like semiconductor fabrication.

Check valves and shut-off valves further refine distribution by directing flow unidirectionally and allowing isolation of sections for maintenance without system shutdown. In bulk systems, GigaGuard™ PLC controllers with touchscreen interfaces enable real-time adjustments, optimizing distribution for high-throughput demands. Telemetry features, such as wireless monitoring in the SX Series®, report gas levels and pressures remotely, allowing predictive maintenance to sustain precision.

For liquid gases, features like the “gas saver circuit” in cryogenic manifolds utilize residual pressure from reserves, ensuring efficient use and precise delivery. Scale-based systems automate filling by weight, providing accuracy in dewar replenishment. In specialty setups, economizers reduce gas loss during transitions, while detachable control modules allow upgrades without disrupting distribution. Benefits of these features are manifold: reduced cylinder changes lower labor costs, minimized waste boosts sustainability, and consistent delivery enhances process yields. In pharmaceuticals, precise manifolds prevent contamination in culture growth, while in lasers, they maintain beam quality. Advanced manifolds also integrate heaters to avoid freezing in CO2 systems, ensuring flow stability. Overall, these innovations make specialty gas manifolds indispensable for precision-driven industries, turning complex gas management into a reliable science.

Safety Features with Emphasis on Explosion-Proof Design

Safety is the cornerstone of specialty gas manifold design, given the risks associated with high-pressure, flammable, or toxic gases. These systems incorporate multiple layers of protection, from material selection to automated safeguards, with a particular focus on explosion-proof configurations for hazardous environments. Leak-proof seals are fundamental, often achieved through Hastelloy/Elgiloy diaphragms that provide tight closures, preventing gas escapes. Built-in relief valves on the delivery side vent excess pressure, while check valves at inlets block reverse flow. Alarm systems, such as 24-hour leak detection in advanced manifolds, monitor for anomalies and trigger alerts via text or remote telemetry. Delayed alarms allow brief fluctuations without unnecessary shutdowns, balancing safety with operational continuity.

Explosion-proof designs elevate safety in volatile settings. Options like the EX code in certain manifolds include explosion-resistant enclosures and alarms, certified for use in classified areas. These comply with standards such as DIN EN ISO 80079-36 and IEC TS 60079-32-1, enabling operation in EX-zones 1 and 2 with gases in risk groups I through IIC. Materials like 316L stainless steel resist corrosion and ignition, while electrostatic chargeability tests prevent spark-induced explosions. In bulk systems for hazardous gases, SEMI S2 compliance ensures comprehensive safety, including emergency stop buttons and PLC-monitored interlocks. Bank separation allows safe venting and purging of one side while the other operates, reducing exposure risks. For medical and lab uses, modular designs facilitate safe indoor installation, with pressure switches indicating low reserves.

Additional features include O2 ignition testing per EN ISO 10297, ensuring components withstand oxidative stresses. Wireless telemetry provides real-time oversight, enabling proactive interventions. These measures collectively mitigate hazards, protecting personnel and equipment. In petrochemical plants, explosion-proof manifolds prevent incidents with flammable gases, while in semiconductors, they safeguard against toxic leaks. By prioritizing these features, manufacturers ensure manifolds not only distribute gases precisely but also uphold the highest safety standards.

Applications and Case Studies

Specialty gas manifolds find extensive use across industries where gas purity and reliability are non-negotiable. In semiconductor manufacturing, bulk systems like Megaturion™ deliver gases such as AsH₃ for doping processes, ensuring ultra-high purity to avoid chip defects. Automatic changeovers minimize downtime, critical for 24/7 operations. In pharmaceuticals and laboratories, manifolds support cell cultures and analytical instruments. The SX Series® with leak detection is ideal for military research, where precision prevents experimental failures.

Medical applications include oxygen and nitrous oxide distribution, with manifolds ensuring safe, consistent supply to operating rooms. Petrochemical and automotive sectors utilize dual-stage manifolds for laser cutting and plasma processes, where precise flow enhances cut quality. A case study from a semiconductor fab showed that implementing explosion-proof manifolds reduced incident rates by 40%, thanks to integrated alarms and robust construction. Agricultural applications, like CO2 enrichment in greenhouses, benefit from specialized manifolds that maintain optimal gas levels for plant growth. Overall, these systems adapt to diverse needs, driving efficiency and safety.

Installation, Maintenance, and Best Practices

Proper installation begins with site assessment, ensuring compatibility with gas types and environmental conditions. Manifolds should be mounted securely, with split plates for ease, and connected via CGA fittings. Professional setup includes pressure testing and calibration.

Maintenance involves regular inspections for leaks, gauge accuracy, and valve function. Telemetry aids in predictive upkeep, while modular designs allow component swaps without full shutdowns. Best practices include training operators, adhering to purge protocols, and scheduling annual certifications to comply with safety standards.

Conclusion

Specialty gas manifolds epitomize the fusion of precision and safety in gas handling. Through features like automatic changeovers, dual-stage regulation, and explosion-proof designs, they enable reliable distribution while mitigating risks. As industries advance, these systems will continue to evolve, ensuring safer and more efficient operations worldwide.
