Bulk Chemical Delivery System for Advanced Semiconductor Manufacturing Applications and Process Safety

Introduction

The semiconductor industry relies on ultra-high-purity chemicals to manufacture integrated circuits, advanced packaging, MEMS devices, power semiconductors, and display panels. Every process, from wafer cleaning and photolithography to chemical mechanical planarization (CMP) and wet etching, requires precise chemical delivery with exceptional consistency, safety, and contamination control.

As semiconductor fabrication continues to advance toward smaller process nodes and larger wafer sizes, manufacturers demand highly automated, intelligent, and reliable chemical distribution solutions. A Bulk Chemical Delivery System (BCDS) has become one of the most critical infrastructures inside modern semiconductor fabrication facilities (fabs), enabling continuous and safe delivery of high-purity chemicals from bulk storage tanks to production tools.

This article explores the working principles, major components, design considerations, safety features, and benefits of bulk chemical delivery systems for semiconductor applications.

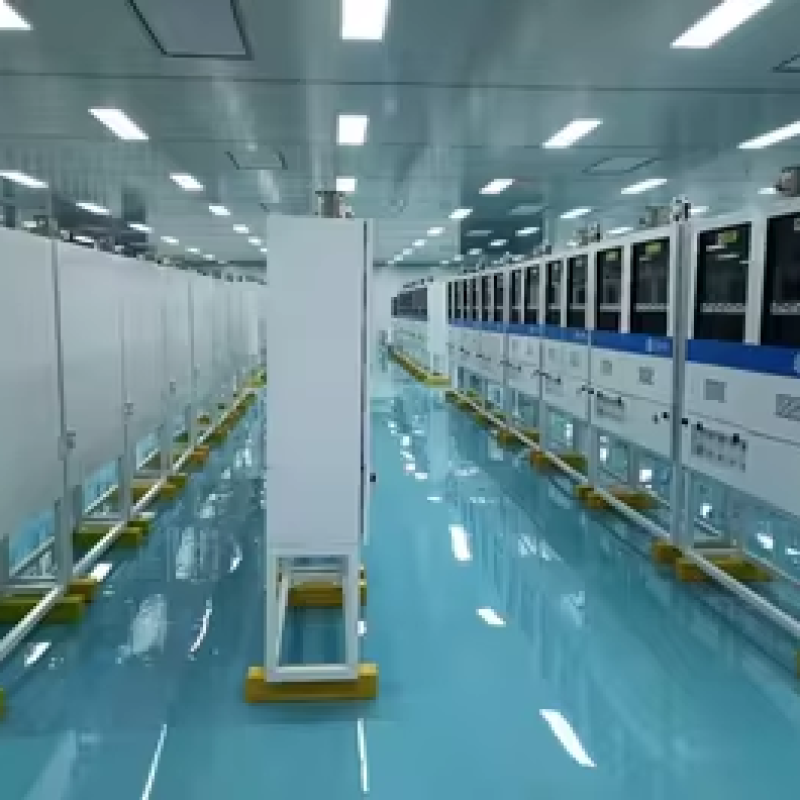

What Is a Bulk Chemical Delivery System?

A Bulk Chemical Delivery System is a centralized automated system designed to safely store, monitor, transfer, and distribute high-purity process chemicals throughout a semiconductor manufacturing facility.

Instead of operators manually transporting chemical containers to individual process tools, chemicals are stored in dedicated bulk tanks and delivered through high-purity piping networks using automated pumps, valves, sensors, and control systems.

The system minimizes human exposure, improves chemical utilization, reduces contamination risks, and ensures uninterrupted production.

Bulk chemical delivery systems are commonly integrated with:

• Wet benches
• Wafer cleaning equipment
• Photolithography tools
• CMP equipment
• Chemical blending systems
• Chemical dispense units (CDU)
• Semiconductor process tools
• Chemical recycling systems

Why Semiconductor Manufacturing Requires Bulk Chemical Delivery

Modern semiconductor production consumes enormous volumes of high-purity chemicals every day. Even a slight variation in chemical concentration, pressure, temperature, or flow rate can directly affect wafer yield and device reliability.

A centralized bulk chemical delivery system offers several important advantages:

• Continuous chemical supply
• Stable pressure and flow control
• Reduced contamination
• Lower labor costs
• Higher manufacturing efficiency
• Improved operator safety
• Real-time process monitoring
• Reduced chemical waste

With fully automated operation, semiconductor manufacturers can achieve higher productivity while maintaining strict quality standards.

Common Chemicals Delivered by Bulk Chemical Systems

A semiconductor bulk chemical delivery system is designed to handle a wide variety of corrosive, oxidizing, and solvent-based chemicals.

Typical chemicals include:

Acids

• Sulfuric Acid (H₂SO₄)
• Hydrofluoric Acid (HF)
• Nitric Acid (HNO₃)
• Hydrochloric Acid (HCl)
• Phosphoric Acid (H₃PO₄)

Alkalis

• Ammonium Hydroxide (NH₄OH)
• Potassium Hydroxide (KOH)
• Tetramethylammonium Hydroxide (TMAH)

Oxidizers

• Hydrogen Peroxide (H₂O₂)
• Ozone Water
• Diluted Oxidizing Solutions

Solvents

• Isopropyl Alcohol (IPA)
• Acetone
• PGMEA
• NMP
• Ethanol

CMP Chemicals

• Silica Slurries
• Ceria Slurries
• Cleaning Agents

Ultra-Pure Water

• DI Water
• Process Water

Each chemical requires dedicated materials, pumps, seals, and piping to ensure compatibility and purity.

Main Components of a Bulk Chemical Delivery System

A modern semiconductor chemical delivery system consists of multiple integrated subsystems working together.

1. Bulk Chemical Storage Tanks

Bulk storage tanks serve as the primary chemical reservoirs.

Common construction materials include:

• High-density polyethylene (HDPE)
• Polypropylene (PP)
• PVDF
• PTFE-lined tanks
• Stainless steel (for compatible chemicals)

Tank capacities may range from several hundred liters to tens of thousands of liters depending on fab production capacity.

2. Chemical Transfer Pumps

Chemical pumps move liquids from storage tanks to day tanks or directly to production equipment.

Popular pump technologies include:

• Double diaphragm pumps
• Magnetically coupled centrifugal pumps
• Air-operated diaphragm pumps
• Metering pumps
• Peristaltic pumps

Pump selection depends on:

• Chemical compatibility
• Required flow rate
• Delivery pressure
• Particle generation
• Maintenance requirements

3. High-Purity Piping Network

Chemical distribution piping must prevent contamination while resisting aggressive chemicals.

Common piping materials include:

• PFA tubing
• PTFE tubing
• PVDF pipe
• HDPE pipe
• PP-H piping

Orbital welding and high-purity fittings help minimize particle generation and leakage.

4. Automatic Valve Assemblies

Automated valves regulate chemical flow throughout the system.

Typical valve types include:

• Diaphragm valves
• Ball valves
• Pneumatic valves
• Solenoid valves
• Pinch valves

High-purity diaphragm valves are especially popular because they reduce dead volume and particle accumulation.

5. Filtration Units

Ultra-clean filtration is essential for semiconductor manufacturing.

Filtration systems commonly include:

• Pre-filters
• High-purity membrane filters
• Ultra-fine particle filters
• Final point-of-use filters

Filtration ratings often range from 0.05 μm to 0.2 μm.

6. Flow Measurement Devices

Accurate chemical dosing requires continuous monitoring.

Instrumentation includes:

• Flow meters
• Pressure transmitters
• Level sensors
• Temperature sensors
• Conductivity sensors

Digital monitoring enables closed-loop process control.

7. PLC and Automation Control

A programmable logic controller (PLC) serves as the system’s control center.

Functions include:

• Automatic pump sequencing
• Valve operation
• Tank level monitoring
• Alarm management
• Batch control
• Chemical inventory tracking
• Emergency shutdown

Many systems also integrate with SCADA and Manufacturing Execution Systems (MES) for centralized monitoring and data management.

How a Bulk Chemical Delivery System Works

The operating sequence typically includes:

Step 1: Chemical Receiving

Bulk chemicals are delivered by tanker truck or large containers into storage tanks.

Automatic level sensors verify tank capacity before transfer begins.

Step 2: Storage

Chemicals remain inside sealed high-purity tanks equipped with:

• Vent filters
• Overflow protection
• Secondary containment
• Leak detection

Step 3: Transfer

Chemical pumps transport the liquid through dedicated piping.

Pressure controllers maintain stable delivery conditions.

Step 4: Filtration

Chemicals pass through multiple filtration stages to remove particles and maintain ultra-high purity.

Step 5: Distribution

Filtered chemicals are distributed to multiple production tools simultaneously.

Each process tool receives precise pressure and flow according to production requirements.

Step 6: Monitoring

The control system continuously records:

• Tank levels
• Pump status
• Pressure
• Flow
• Temperature
• Chemical consumption
• Alarm history

This data supports predictive maintenance and process optimization.

Safety Features

Because semiconductor chemicals are often corrosive, toxic, or flammable, safety is a top priority.

Modern systems incorporate multiple layers of protection.

Leak Detection

Chemical leak sensors immediately detect spills and activate alarms.

Secondary Containment

Chemical tanks are installed inside containment basins to prevent environmental contamination.

Emergency Shutdown (ESD)

The system can automatically stop pumps and isolate valves during abnormal conditions.

Ventilation Integration

Exhaust ventilation removes hazardous vapors from chemical cabinets and storage areas.

Overflow Protection

High-level sensors prevent accidental tank overfilling.

Chemical Identification

Automated barcode or RFID systems verify chemical types before unloading.

Redundant Equipment

Critical pumps and sensors are often configured with N+1 redundancy to maximize uptime.

Material Compatibility

Selecting proper construction materials is essential for long-term reliability.

Chemical	Recommended Material
Hydrofluoric Acid	PFA, PTFE, PVDF
Sulfuric Acid	PVDF, PTFE
Nitric Acid	PVDF
Hydrochloric Acid	PP, PVDF
IPA	Stainless Steel 316L
Acetone	Stainless Steel 316L
Hydrogen Peroxide	PVDF, PTFE

Proper material selection minimizes corrosion and extends equipment service life.

Automation and Industry 4.0 Integration

Today’s semiconductor fabs increasingly demand intelligent chemical management.

Advanced bulk chemical delivery systems include:

• Remote monitoring
• Cloud-based diagnostics
• Predictive maintenance
• AI-assisted fault detection
• Automatic inventory management
• Digital chemical traceability
• Production analytics
• Real-time reporting

These features improve equipment availability while reducing operational costs.

Advantages of Bulk Chemical Delivery Systems

Compared with manual chemical handling, centralized bulk delivery systems provide numerous benefits.

Improved Safety

Operators have minimal direct contact with hazardous chemicals.

Higher Productivity

Continuous chemical supply eliminates production interruptions.

Better Process Stability

Automated control maintains consistent flow, pressure, and concentration.

Reduced Contamination

Closed delivery systems prevent airborne particles and impurities from entering chemicals.

Lower Operating Costs

Automation reduces labor requirements and minimizes chemical waste.

Easier Maintenance

Modular designs simplify servicing and future expansion.

Environmental Protection

Leak prevention and optimized chemical usage reduce environmental impact.

Applications in Semiconductor Manufacturing

Bulk chemical delivery systems support nearly every wet process inside semiconductor fabs.

Typical applications include:

• Wafer cleaning
• RCA cleaning
• Oxide etching
• Silicon etching
• Wet benches
• CMP slurry distribution
• Photoresist developer supply
• Chemical dilution systems
• Advanced packaging
• MEMS fabrication
• Power semiconductor manufacturing
• Compound semiconductor production
• LED manufacturing
• LCD and OLED display fabrication
• Photovoltaic manufacturing

As process technologies continue to evolve, demand for higher chemical purity and tighter process control continues to increase.

Future Development Trends

Future semiconductor chemical delivery systems are expected to become more intelligent, efficient, and sustainable.

Emerging trends include:

• Fully autonomous chemical management
• AI-powered predictive maintenance
• Digital twin technology
• Real-time chemical quality analysis
• Smart sensor integration
• Energy-efficient pumping systems
• Zero-leak designs
• Reduced chemical consumption
• Modular skid-mounted systems
• Integration with smart factories and Industry 4.0 platforms

These innovations will enable semiconductor manufacturers to improve production efficiency while meeting increasingly stringent environmental and safety regulations.

Conclusion

A Bulk Chemical Delivery System is a vital component of modern semiconductor manufacturing infrastructure. By providing safe, automated, and contamination-free delivery of ultra-high-purity chemicals, these systems help ensure stable process conditions, maximize wafer yield, and support continuous production in advanced fabrication facilities.

With integrated automation, high-purity materials, precision instrumentation, and comprehensive safety features, bulk chemical delivery systems significantly reduce operational risks while improving efficiency and chemical utilization. As semiconductor technology advances toward increasingly complex device architectures and smarter manufacturing environments, intelligent bulk chemical delivery solutions will play an even more important role in enabling reliable, scalable, and sustainable production.

For semiconductor equipment manufacturers, EPC contractors, and wafer fabrication facilities, investing in a high-performance bulk chemical delivery system is not only a commitment to operational excellence but also a strategic step toward meeting the evolving demands of next-generation semiconductor manufacturing.
