316L Stainless Steel UHP Ball Valves for High-Purity Gas Distribution Networks

Introduction

High-purity gas distribution networks are the foundation of modern semiconductor manufacturing, pharmaceutical production, biotechnology laboratories, analytical instrumentation, solar cell manufacturing, and other precision industries. These systems transport ultra-high purity (UHP) gases from storage cylinders or bulk gas sources to production equipment while maintaining exceptional gas purity, leak integrity, and process stability.

One of the most critical components within these gas delivery systems is the ultra-high purity ball valve. Designed to provide reliable shut-off, minimal particle generation, and exceptional corrosion resistance, 316L Stainless Steel UHP Ball Valves have become the preferred solution for demanding gas distribution applications.

Manufactured with electropolished 316L stainless steel, precision machining, and stringent quality control, UHP ball valves ensure contamination-free gas flow while meeting the highest industrial standards. This article explores the features, materials, manufacturing process, advantages, applications, and selection considerations of 316L stainless steel UHP ball valves for high-purity gas distribution networks.

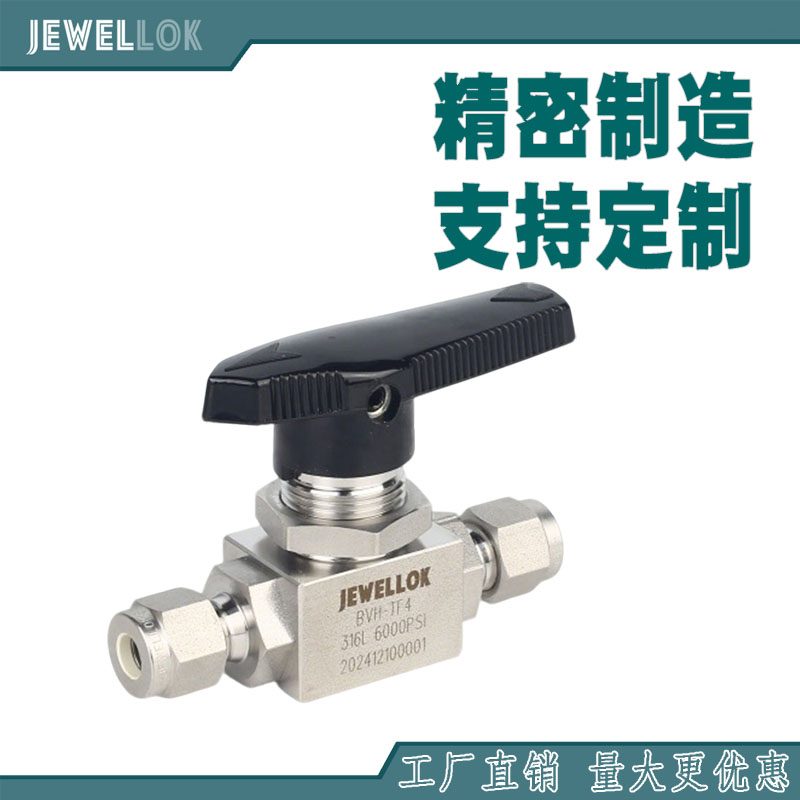

What Is a UHP Ball Valve?

A UHP (Ultra High Purity) ball valve is a quarter-turn isolation valve specifically engineered for clean gas systems where contamination must be minimized.

Unlike conventional industrial ball valves, UHP ball valves are manufactured under strict cleanliness standards and feature:

• High-purity 316L stainless steel body
• Precision-machined ball and seats
• Low internal dead volume
• Electropolished flow passages
• Helium leak-tested construction
• Particle-free assembly
• Cleanroom packaging

These valves are widely used in gas panels, valve manifold boxes (VMBs), gas cabinets, bulk gas distribution systems, and semiconductor process equipment.

Their primary purpose is to provide reliable on/off control while maintaining gas purity from source to process tool.

Why 316L Stainless Steel Is the Preferred Material

Material selection plays a decisive role in the performance of high-purity gas systems.

316L stainless steel offers an ideal combination of mechanical strength, corrosion resistance, weldability, and low carbon content.

Key advantages include:

Excellent Corrosion Resistance

316L stainless steel contains molybdenum, providing outstanding resistance against:

• Moisture
• Acidic gases
• Chlorides
• Corrosive chemicals
• Cleaning agents

This ensures long-term reliability even in harsh chemical environments.

Low Carbon Content

The “L” designation indicates low carbon content.

Benefits include:

• Reduced carbide precipitation
• Better weld integrity
• Improved corrosion resistance
• Enhanced service life

This is especially important for orbital welding used in semiconductor gas lines.

High Mechanical Strength

316L stainless steel maintains excellent strength under:

• High pressure
• High temperature
• Vacuum conditions
• Frequent cycling

This makes it suitable for demanding industrial applications.

Outstanding Surface Finish

Electropolished 316L provides:

• Extremely smooth internal surfaces
• Reduced particle adhesion
• Lower contamination risk
• Easier cleaning
• Improved corrosion resistance

Typical internal surface roughness:

Ra ≤ 10 μin (0.25 μm)

Premium UHP valves may achieve:

Ra ≤ 5 μin (0.13 μm)

Importance of UHP Ball Valves in Gas Distribution Networks

High-purity gas distribution systems transport expensive and highly sensitive process gases.

Even microscopic contamination can cause:

• Wafer defects
• Process instability
• Equipment downtime
• Product rejection
• Increased production costs

UHP ball valves help eliminate contamination sources by providing:

Leak-Free Isolation

Reliable shut-off prevents:

• Atmospheric contamination
• Gas loss
• Cross-contamination

Typical leak specifications include:

External leakage:

Less than 1 × 10⁻⁹ atm·cc/sec He

Internal leakage:

Bubble-tight shutoff

Minimal Dead Space

Dead volume traps gas residues and contaminants.

Modern UHP ball valves are designed with:

• Compact flow paths
• Optimized cavity geometry
• Low hold-up volume

This improves purge efficiency and reduces gas consumption.

Low Particle Generation

Particle contamination is one of the biggest concerns in semiconductor fabrication.

Precision manufacturing helps minimize:

• Metal wear
• Seat abrasion
• Internal friction
• Particle release

High Cycle Life

Production facilities operate continuously.

High-quality UHP ball valves are designed for:

• Tens of thousands of operating cycles
• Stable sealing performance
• Long maintenance intervals

Key Design Features

Modern UHP ball valves incorporate numerous advanced engineering features.

Full-Port Flow Design

A full-port ball provides:

• Maximum flow capacity
• Minimal pressure drop
• Efficient gas delivery

This is especially important for high-flow gas systems.

Precision Ball Machining

The ball is manufactured with:

• CNC precision machining
• Mirror polishing
• Tight dimensional tolerances

Benefits include:

• Smooth operation
• Improved sealing
• Longer service life

PCTFE or PTFE Seats

Seat materials significantly affect valve performance.

Common options include:

PTFE

Advantages:

• Chemical resistance
• Low friction
• Excellent sealing

PCTFE

Advantages:

• Better dimensional stability
• Lower gas permeability
• Superior performance at low temperatures

Blowout-Proof Stem

A safety stem design prevents accidental stem ejection under pressure.

Benefits include:

• Increased operator safety
• Reliable sealing
• Long-term durability

Double Stem Sealing

Multiple sealing barriers improve leak integrity.

Typical stem sealing includes:

• PTFE packing
• O-rings
• Spring-loaded sealing systems

Quarter-Turn Operation

Only a 90-degree rotation is required.

Advantages include:

• Fast operation
• Easy automation
• Simple maintenance
• Reliable shut-off

Manufacturing Process of UHP Ball Valves

Producing UHP valves requires significantly higher manufacturing standards than conventional industrial valves.

Material Verification

Every raw material undergoes:

• PMI (Positive Material Identification)
• Material certification
• Heat number traceability

Precision CNC Machining

High-precision CNC equipment produces:

• Valve body
• Ball
• Stem
• End connections

Typical tolerances are measured in microns.

Electropolishing

Electropolishing removes microscopic surface irregularities.

Benefits include:

• Lower roughness
• Improved corrosion resistance
• Reduced particle generation
• Better cleanliness

Ultrasonic Cleaning

Multiple cleaning stages remove:

• Oil
• Metal chips
• Dust
• Polishing residue

Only ultra-clean components proceed to assembly.

Cleanroom Assembly

Assembly takes place in controlled cleanroom environments to prevent contamination.

Operators wear:

• Gloves
• Masks
• Cleanroom garments

Helium Leak Testing

Every valve is tested using helium mass spectrometry.

Leak integrity typically reaches:

1 × 10⁻⁹ atm·cc/sec He or better.

Final Cleaning and Packaging

Each valve is:

• Nitrogen dried
• Double bagged
• Vacuum packaged
• Clearly labeled

This ensures cleanliness during transportation and installation.

Applications of 316L UHP Ball Valves

Because of their superior cleanliness and reliability, UHP ball valves are widely used across multiple industries.

Semiconductor Manufacturing

Applications include:

• Gas cabinets
• Valve manifold boxes
• Bulk specialty gas systems
• Process gas panels
• Wafer fabrication equipment

Common gases include:

• Nitrogen
• Argon
• Hydrogen
• Helium
• Silane
• Ammonia
• Chlorine
• Hydrogen chloride

Pharmaceutical Manufacturing

Used for:

• Clean gas delivery
• Sterile production
• Bioprocess systems
• API manufacturing

Biotechnology

Ideal for:

• Laboratory gas systems
• Fermentation facilities
• Cell culture equipment

Analytical Laboratories

Suitable for:

• Gas chromatography
• Mass spectrometry
• ICP systems
• Calibration gas distribution

Solar Cell Manufacturing

Used in:

• PECVD systems
• Thin-film deposition
• Gas supply panels

LED and Display Manufacturing

Supports high-purity gas delivery for:

• OLED production
• LCD manufacturing
• Micro-LED fabrication

Compatibility with High-Purity Gases

316L stainless steel UHP ball valves are compatible with a wide range of gases.

Typical examples include:

• Nitrogen (N₂)
• Argon (Ar)
• Helium (He)
• Hydrogen (H₂)
• Oxygen (O₂)
• Carbon dioxide (CO₂)
• Ammonia (NH₃)
• Silane (SiH₄)
• Nitrous oxide (N₂O)
• Hydrogen chloride (HCl)

For highly corrosive or toxic gases, specialized seat materials and sealing configurations should be selected to maximize safety and service life.

Advantages Over Conventional Industrial Ball Valves

Compared with standard industrial valves, UHP ball valves offer significant performance improvements.

Feature	Conventional Ball Valve	UHP Ball Valve
Material	Standard stainless steel	High-purity 316L SS
Surface Finish	Machined	Electropolished
Cleanliness	General industrial	Semiconductor-grade
Leak Rate	Standard industrial	Ultra-low helium leak
Particle Control	Moderate	Extremely low
Packaging	Standard	Double cleanroom bagged
Traceability	Limited	Complete material traceability
Application	General industry	Ultra-high purity gas systems

How to Select the Right UHP Ball Valve

Choosing the correct valve requires careful evaluation of application requirements.

Important factors include:

Pressure Rating

Ensure the valve safely handles maximum operating pressure.

Temperature Range

Verify compatibility with process temperatures.

End Connection

Available options include:

• Tube butt weld
• Face seal fittings
• Compression fittings
• VCR-compatible connections

Flow Capacity

Select appropriate orifice size based on system flow requirements.

Surface Finish

For semiconductor applications:

Ra ≤ 10 μin

For critical processes:

Ra ≤ 5 μin

Leak Integrity

Select valves with certified helium leak testing.

Certification

Look for:

• Material certificates
• Pressure testing reports
• Leak test reports
• Cleanliness certification
• Traceability documentation

Maintenance Best Practices

Proper maintenance extends valve life and preserves gas purity.

Recommended practices include:

• Inspect valves regularly for external leakage.
• Operate valves periodically to prevent sticking.
• Avoid contamination during installation.
• Use only clean tools and gloves.
• Replace worn seats and seals during scheduled maintenance.
• Perform leak testing after maintenance.
• Follow manufacturer torque specifications.
• Keep valves sealed before installation.

Proper handling significantly reduces contamination risks and extends equipment reliability.

Future Trends in UHP Ball Valve Technology

As semiconductor process nodes continue to shrink and purity requirements become increasingly stringent, UHP valve technology continues to evolve.

Emerging developments include:

• Higher purity electropolished surfaces
• Advanced low-particle seat materials
• Smart valves with digital monitoring
• Automated valve actuation
• Improved corrosion-resistant alloys
• Enhanced helium leak performance
• AI-assisted predictive maintenance
• Sustainable manufacturing processes

These innovations will help manufacturers achieve greater production efficiency, lower operating costs, and improved process consistency.

Conclusion

316L Stainless Steel UHP Ball Valves are indispensable components in modern high-purity gas distribution networks. Their superior corrosion resistance, ultra-clean internal surfaces, exceptional leak tightness, and long service life make them the ideal choice for semiconductor fabrication, pharmaceutical manufacturing, biotechnology, analytical laboratories, and other industries where gas purity is critical.

By combining premium 316L stainless steel, precision CNC machining, electropolished flow paths, cleanroom assembly, and rigorous helium leak testing, these valves provide reliable performance even in the most demanding ultra-high purity environments. As industrial processes continue to demand higher cleanliness standards and greater operational reliability, investing in high-quality UHP ball valves is essential for maintaining product quality, maximizing system uptime, and ensuring long-term operational success.

For more about 316L stainless steel UHP ball valves for high-purity gas distribution networks, you can pay a visit to Jewellok at https://www.jewellok.com/product-category/chemical-delivery-system/ for more info.
